Face Material
Aluminum sheet with a wood grain finish.
EN

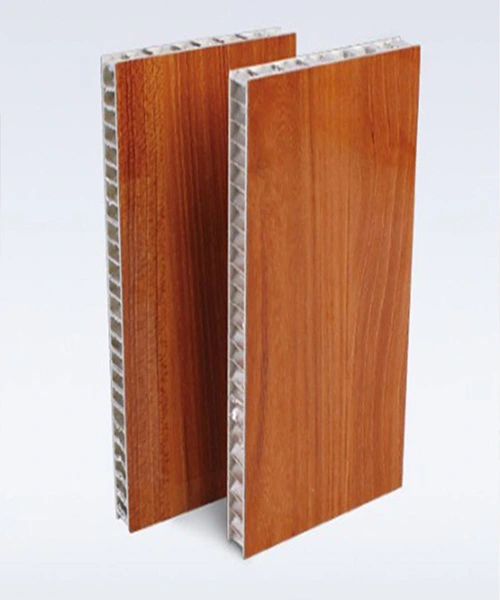

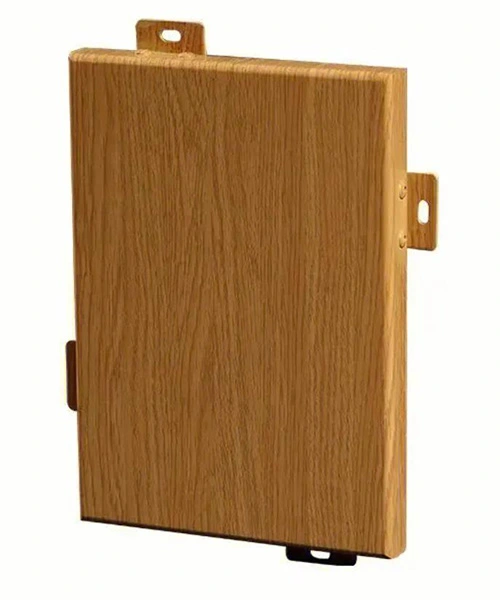

Wood grain aluminum honeycomb panels combine the aesthetic appeal of wood with the durability and lightweight properties of aluminum. These panels are often used in architectural and interior design applications where a natural wood appearance is desired without the disadvantages of actual wood.
Aluminum Honeycomb Panel Technical Parameters | |||||
| ASTM | Unit | 10mm | 15mm | 20mm | |
| Unit Theoretical Weight | kg/m² | 5.4 | 5.6 | 5.75 | |
| Tensile Strength | E8 | N/mm | 806 | 598 | 455 |
| Endurance | E8 | N/mm² | 531 | 405 | 279 |
| Elongate | E8 | % | 1.2 | 1.4 | 17 |
| Flexural Rigidity | C393 | X10⁶N .mm² | 8.03 | 15.4 | 38.44 |
| Flexural Elasticity | N/mm² | 50000 | 40600 | 38.44 | |
| Temperature Elongation Is Taught | D696 | 0.24 | 0.24 | 0.24 | |
| Thermal Conductivity | D976 | X10-⁶N/℃ | 0.23 | 0.19 | 0.15 |
| Thermal Deformation Mud Degree | D648 | ℃ | 200 | 200 | 200 |
| Bond Strength | C297 | N/mm² | 12 | 12 | |
| Flatness of the Board | The maximum deviation is 1mm/M. | ||||
| Combustion-Supporting Property | on-combustible, in line with the relevant fire rating standard | ||||
| Sound Insulation Property | 0-3dB depending on the mounting Angle of the panel | ||||
Aluminum Honeycomb Panel Specifications and Mechanical Properties | |||||||||
| Specification | Thick H (mm) | Panel T1 (mm) | Background T2 (mm) | Honeycomb Core T (mm) | Width (mm) | Length (mm) | Specific Gravity (kg/m²) | Rigidity (kN/mm²) | Sectional Film Weight (cg³/m) |
| M06 | 6 | 0.6 | 0.5 | 12-19 | 250-1500 | 600-4500 | 4.8 | 0.71 | 2.5 |
| M10 | 10 | 0.8 | 0.7 | 12-19 | 5.3 | 2.49 | 4.5 | ||
| M15 | 15 | 0.8-1.0 | 0.8 | 12-19 | 7 | 7.55 | 14 | ||
| M20 | 20 | 1.0 | 0.8 | 12-19 | 7.4 | 13.9 | 19 | ||
| M25 | 25 | 1.0 | 0.8 | 12-19 | 7.8 | 22.17 | 24 | ||
Aluminum sheet with a wood grain finish.

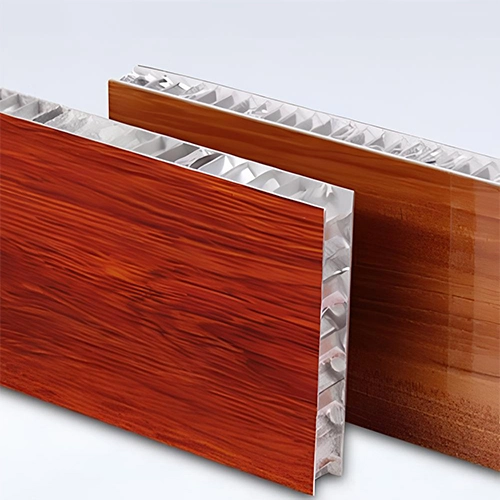

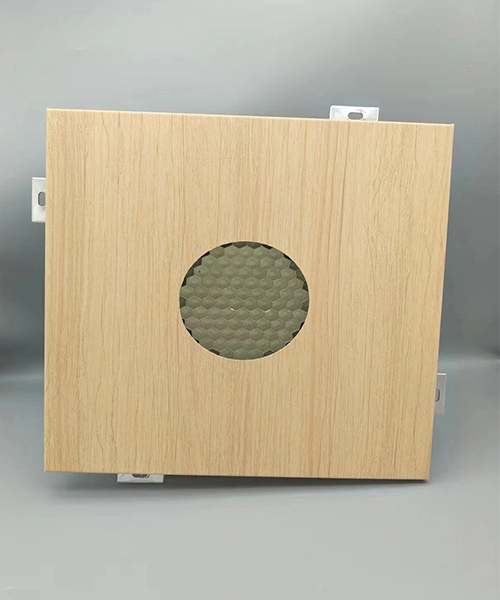

Aluminum honeycomb structure.
Wood grain finish achieved through advanced printing or lamination techniques.
Typically ranges from 6mm to 50mm, depending on the application.
Customizable based on project requirements.
Lightweight due to the honeycomb core, which reduces the overall weight of the panel.
