Face Material
Aluminum sheet with a high-gloss, mirror-like finish.
EN

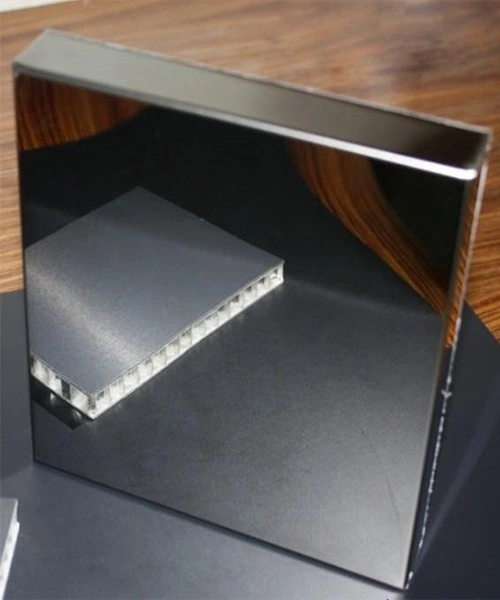

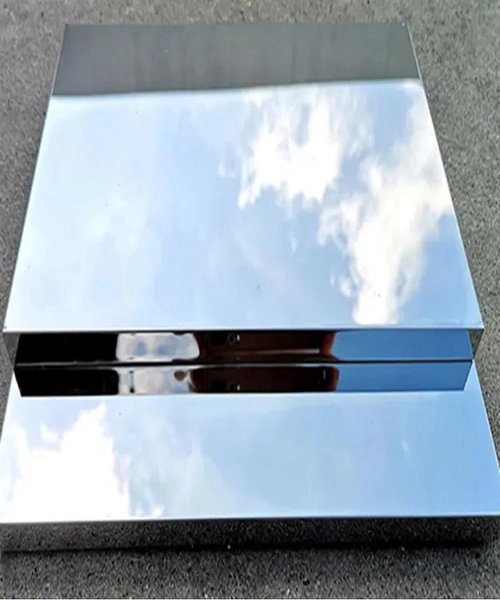

Mirror side aluminum honeycomb panels are designed with a reflective, mirror-like finish on one side, offering both high aesthetic appeal and the benefits of lightweight, strong, and durable aluminum. These panels are popular in modern architecture and interior design for creating sleek, contemporary looks.
Mirror side aluminum honeycomb panels are designed with a reflective, mirror-like finish on one side, offering both high aesthetic appeal and the benefits of lightweight, strong, and durable aluminum. These panels are popular in modern architecture and interior design for creating sleek, contemporary looks.
Aluminum Honeycomb Panel Technical Parameters | |||||
| ASTM | Unit | 10mm | 15mm | 20mm | |
| Unit Theoretical Weight | kg/m² | 5.4 | 5.6 | 5.75 | |
| Tensile Strength | E8 | N/mm | 806 | 598 | 455 |
| Endurance | E8 | N/mm² | 531 | 405 | 279 |
| Elongate | E8 | % | 1.2 | 1.4 | 17 |
| Flexural Rigidity | C393 | X10⁶N .mm² | 8.03 | 15.4 | 38.44 |
| Flexural Elasticity | N/mm² | 50000 | 40600 | 38.44 | |
| Temperature Elongation Is Taught | D696 | 0.24 | 0.24 | 0.24 | |
| Thermal Conductivity | D976 | X10-⁶N/℃ | 0.23 | 0.19 | 0.15 |
| Thermal Deformation Mud Degree | D648 | ℃ | 200 | 200 | 200 |
| Bond Strength | C297 | N/mm² | 12 | 12 | |
| Flatness of the Board | The maximum deviation is 1mm/M. | ||||
| Combustion-Supporting Property | on-combustible, in line with the relevant fire rating standard | ||||
| Sound Insulation Property | 0-3dB depending on the mounting Angle of the panel | ||||
Aluminum Honeycomb Panel Specifications and Mechanical Properties | |||||||||
| Specification | Thick H (mm) | Panel T1 (mm) | Background T2 (mm) | Honeycomb Core T (mm) | Width (mm) | Length (mm) | Specific Gravity (kg/m²) | Rigidity (kN/mm²) | Sectional Film Weight (cg³/m) |
| M06 | 6 | 0.6 | 0.5 | 12-19 | 250-1500 | 600-4500 | 4.8 | 0.71 | 2.5 |
| M10 | 10 | 0.8 | 0.7 | 12-19 | 5.3 | 2.49 | 4.5 | ||
| M15 | 15 | 0.8-1.0 | 0.8 | 12-19 | 7 | 7.55 | 14 | ||
| M20 | 20 | 1.0 | 0.8 | 12-19 | 7.4 | 13.9 | 19 | ||
| M25 | 25 | 1.0 | 0.8 | 12-19 | 7.8 | 22.17 | 24 | ||
Aluminum sheet with a high-gloss, mirror-like finish.

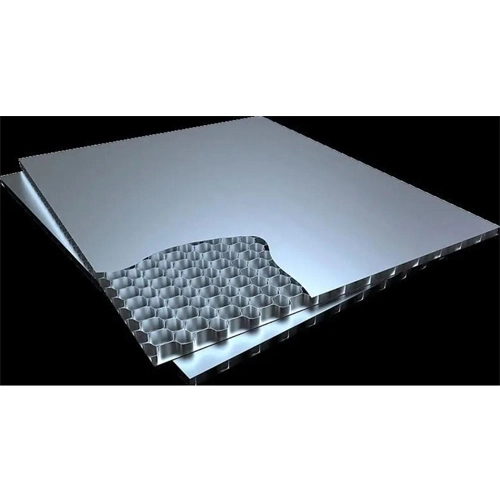

Aluminum honeycomb structure.
Polished mirror finish achieved through anodizing or other surface treatments.
Typically ranges from 6mm to 50mm, based on the application.
Customizable according to project needs.
Lightweight due to the honeycomb core, facilitating easier handling and installation.
