Face Material
Aluminum sheet with a brushed finish.
EN

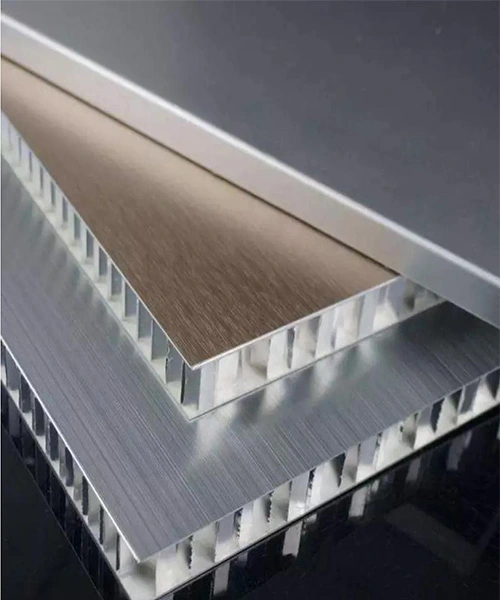

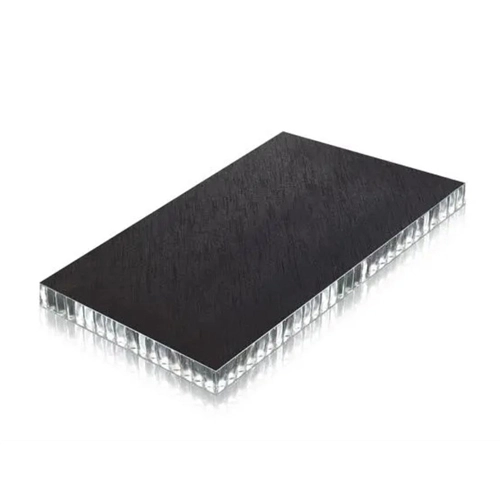

Brushed aluminum honeycomb panels feature a brushed finish on the aluminum surface, providing a sophisticated and modern appearance. These panels are favored for their lightweight, strong structure, and aesthetic appeal, making them ideal for a variety of architectural and interior design applications.
Aluminum Honeycomb Panel Technical Parameters | |||||
| ASTM | Unit | 10mm | 15mm | 20mm | |
| Unit Theoretical Weight | kg/m² | 5.4 | 5.6 | 5.75 | |
| Tensile Strength | E8 | N/mm | 806 | 598 | 455 |
| Endurance | E8 | N/mm² | 531 | 405 | 279 |
| Elongate | E8 | % | 1.2 | 1.4 | 17 |
| Flexural Rigidity | C393 | X10⁶N .mm² | 8.03 | 15.4 | 38.44 |
| Flexural Elasticity | N/mm² | 50000 | 40600 | 38.44 | |
| Temperature Elongation Is Taught | D696 | 0.24 | 0.24 | 0.24 | |
| Thermal Conductivity | D976 | X10-⁶N/℃ | 0.23 | 0.19 | 0.15 |
| Thermal Deformation Mud Degree | D648 | ℃ | 200 | 200 | 200 |
| Bond Strength | C297 | N/mm² | 12 | 12 | |
| Flatness of the Board | The maximum deviation is 1mm/M. | ||||
| Combustion-Supporting Property | on-combustible, in line with the relevant fire rating standard | ||||
| Sound Insulation Property | 0-3dB depending on the mounting Angle of the panel | ||||
Aluminum Honeycomb Panel Specifications and Mechanical Properties | |||||||||
| Specification | Thick H (mm) | Panel T1 (mm) | Background T2 (mm) | Honeycomb Core T (mm) | Width (mm) | Length (mm) | Specific Gravity (kg/m²) | Rigidity (kN/mm²) | Sectional Film Weight (cg³/m) |
| M06 | 6 | 0.6 | 0.5 | 12-19 | 250-1500 | 600-4500 | 4.8 | 0.71 | 2.5 |
| M10 | 10 | 0.8 | 0.7 | 12-19 | 5.3 | 2.49 | 4.5 | ||
| M15 | 15 | 0.8-1.0 | 0.8 | 12-19 | 7 | 7.55 | 14 | ||
| M20 | 20 | 1.0 | 0.8 | 12-19 | 7.4 | 13.9 | 19 | ||
| M25 | 25 | 1.0 | 0.8 | 12-19 | 7.8 | 22.17 | 24 | ||
Aluminum sheet with a brushed finish.
Aluminum honeycomb structure.
Brushed finish achieved through mechanical brushing, giving a linear texture to the aluminum surface.
Typically ranges from 6mm to 50mm, depending on the application.
Customizable to meet specific project requirements.
Lightweight due to the honeycomb core, facilitating easier handling and installation.
Used for building facades to create a modern, stylish appearance.
Applied in wall panels, ceilings, and partitions to provide a contemporary look.
Utilized in the construction of lightweight and durable furniture pieces.
Ideal for doors that require a sleek, brushed metal surface.
Employed in commercial signs and display panels for a high-end, polished look.
Used in various architectural features such as columns, soffits, and other design elements to add elegance and texture.
